Description

PRODUCT FEATURES:

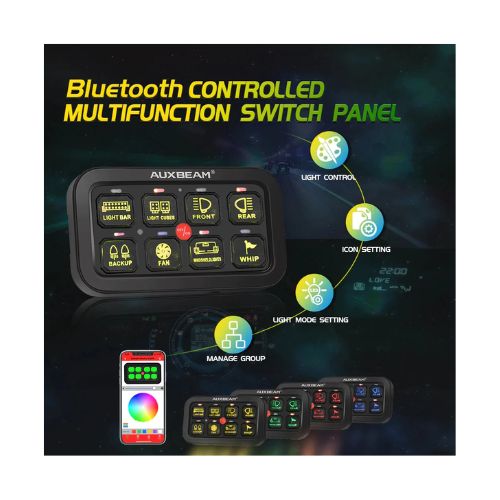

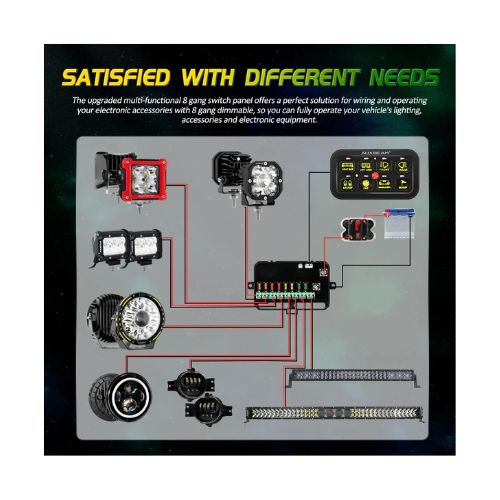

• 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.

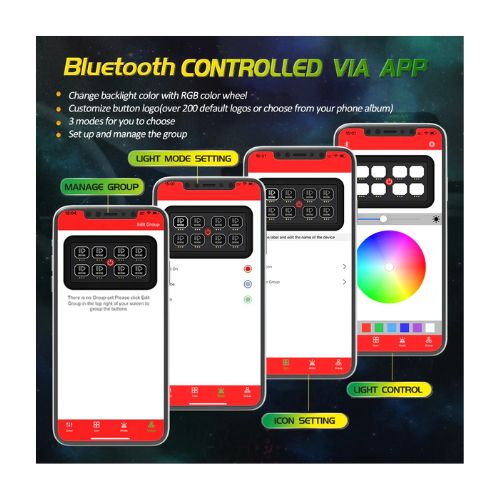

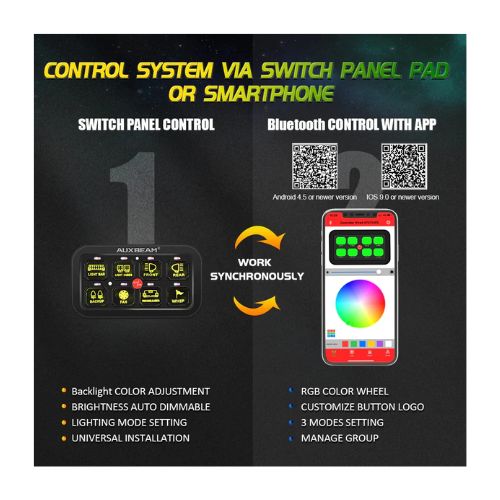

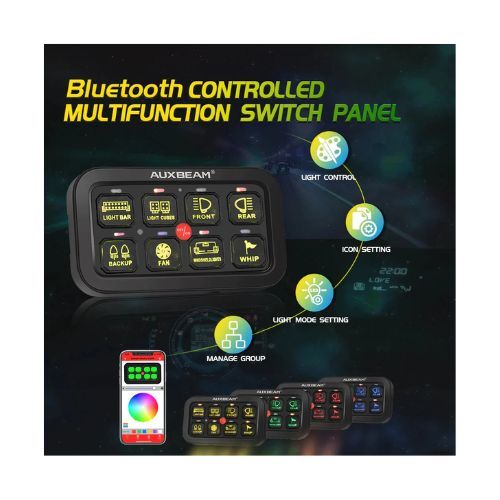

• 2 control methods – Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.

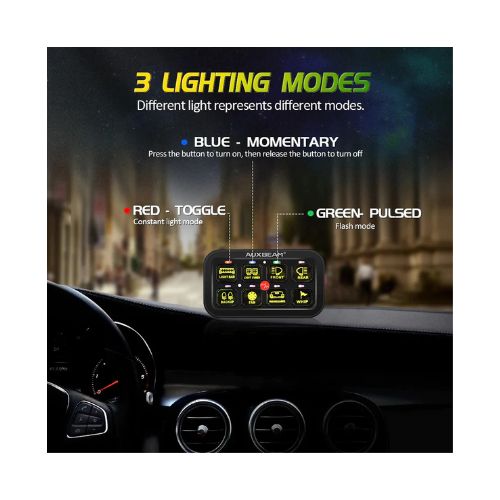

• 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
• RGB backlight color. Adjust backlight color and brightness to match your vehicle.

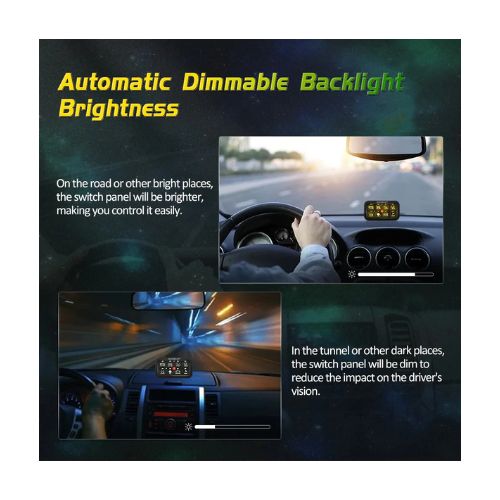

• Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.

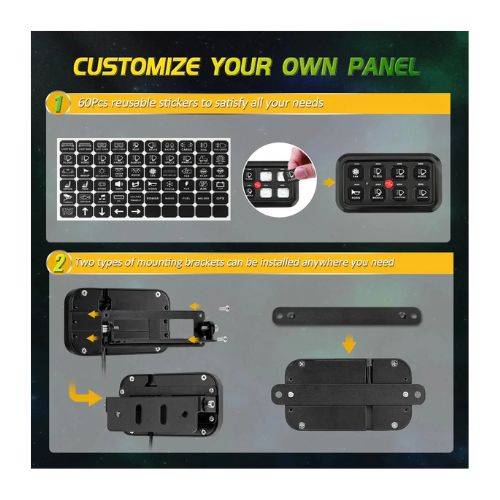

• Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
• DIY button icon on APP. 200 default icons or use your own photos from the phone album.
• Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
• Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
• Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

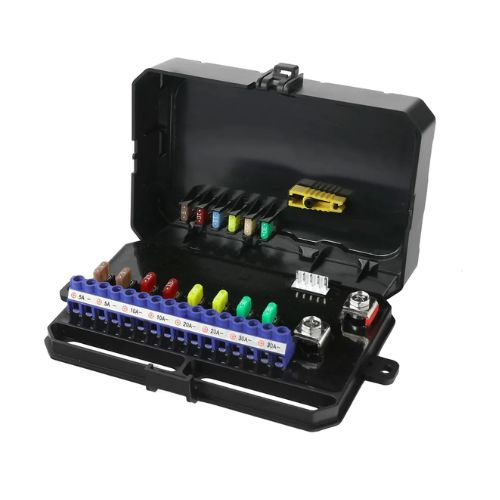

• Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle’s fuse box without cutting, splicing or damaging the original wiring in the vehicle.

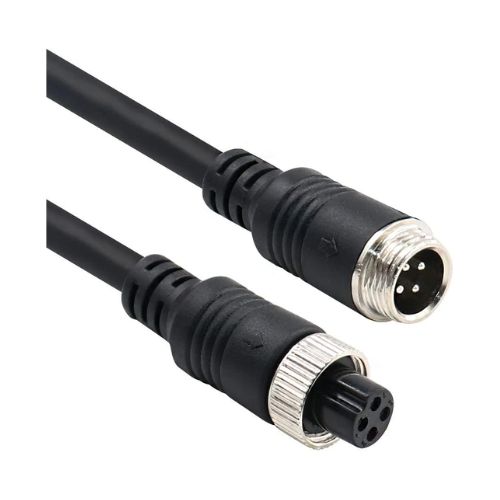

• Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.

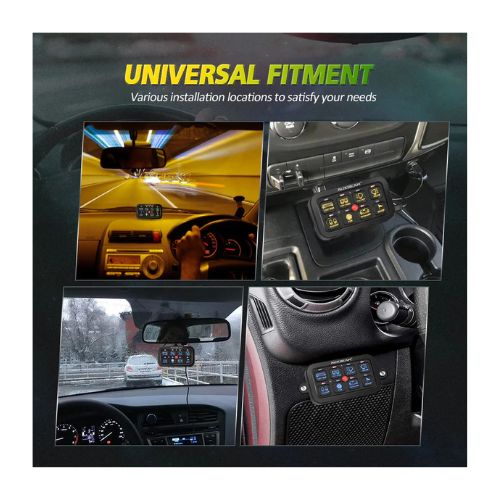

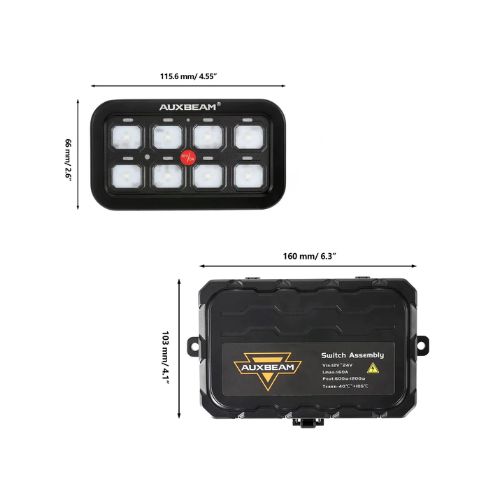

• With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

SPECIFICATIONS:

• Working voltage: DC 12-24V
• Max current: 60A
• Rated voltage: 12V 20A / 24V 10A
• Operating at 12 Volts: max power rating of 720W
• Operating at 24 Volts: max power rating of 1200W
• Switch operation: On-Off
• Operating temperature: -40°C – +105°C
• Waterproof rating: IP65
